Cutting lines

Cutting lines are designed for mass production of high quality sheets and profiles in expanded polystyrene (EPS).

These machines can be connected to equipment for packaging, labelling, marking and stacking the final products.

Each machine is completely designed according to specific production needs. Layouts are defined on the basis of available space and possible connections with existing machines.

Main features

  • Possibility of making sheets only 5mm thick.
  • Higher cutting speeds up to 15%, thanks to the unique wires cooling system.
  • Great surface finishing, thanks to the exclusive oscillating unit with opposing frames and the wires hooking system.
  • The most reliable scrap collection systems on the market, for minimum thickness up to 5mm, that ensure maximum efficiency of the downstream equipment.
  • Laser cutting speed control system, which guarantees maximum precision compared to mechanical systems.
  • Superior accuracy of the final products, thanks to the precision mechanics.
  • Extremely performing, systems designed for mass productions.

Cutting lines for polystyrene sheets

Tecnodinamica’s cutting lines for sheets production represent cutting-edge technology in the field of EPS processing. CNC EPS foam cutting machine are fully automatic and designed to efficiently transform EPS blocks into sheets tailored for the construction and RV industry.

The cutting lines enable the production of sheets with precision and versatility, offering options for straight or pitched sheets in a range of dimensions. With these advanced EPS cutting machines, Tecnodinamica ensures the seamless and automated conversion of EPS blocks into high-quality sheets, meeting the diverse needs of the construction and RV sectors.

Components

  1. Blocks feeding.
  2. Blocks tilter.
  3. Horizontal cutting.
  4. Top scrap collection.
  5. Bottom scrap collection.
  6. Vertical cutting.
  7. Side scrap collection.
  8. Cross cutting.
  9. Pre-crusher.
  10. De-stacker.
  11. Orbital wrapping machine.
  12. Ink-jet printer.
  13. 4 sides wrapping machine.
  14. Packs tilting unit.
  15. Packs labelling machine.

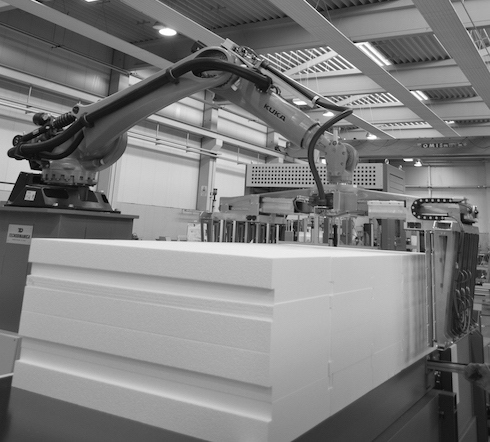

  16. Palletizing robot.
  17. Stacks wrapping machine.
  18. Skids applicator.
  19. Off-loading chain conveyor.
  20. Industry 4.0.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

CUTTING LINES FOR POLYSTYRENE PROFILES

Tecnodinamica’s cutting lines for profiles production are fully automatic machines to turn EPS blocks into profiles for the construction industry. These machines allow to get products of various dimensions.

Components

  1. Blocks tilter.
  2. Horizontal cutting.
  3. Bottom scrap collection.
  4. Vertical cutting.
  5. Side scrap collection.
  6. Top scrap collection.
  7. Contour cutter.
  8. Pre-crusher.

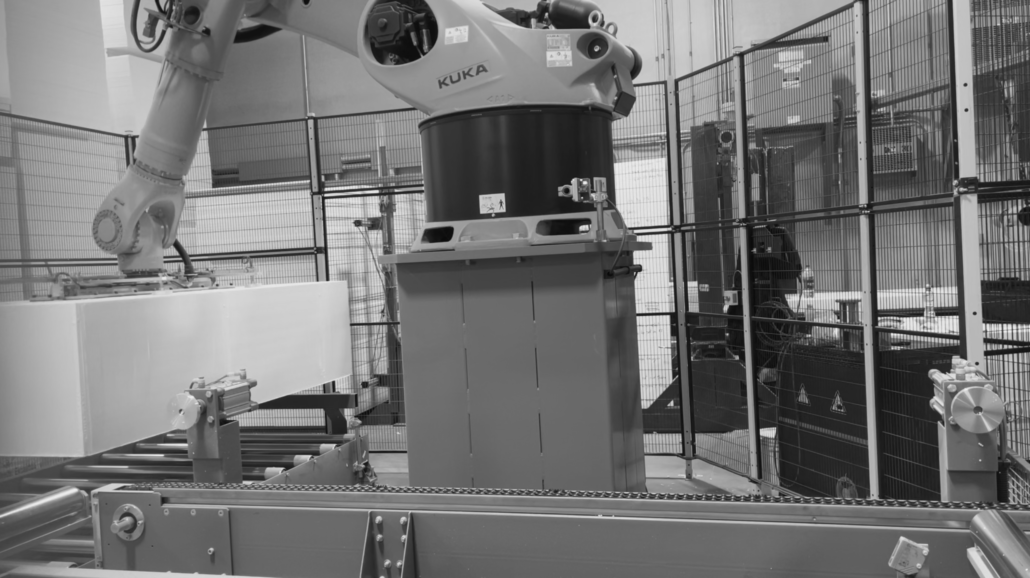

  9. Palletizing robot.
  10. Off-loading roller conveyor.
  11. Orbital wrapping machine.
  12. Skids applicator.
  13. Packs labelling machine.
  14. Off-loading chain conveyor.
  15. Industry 4.0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

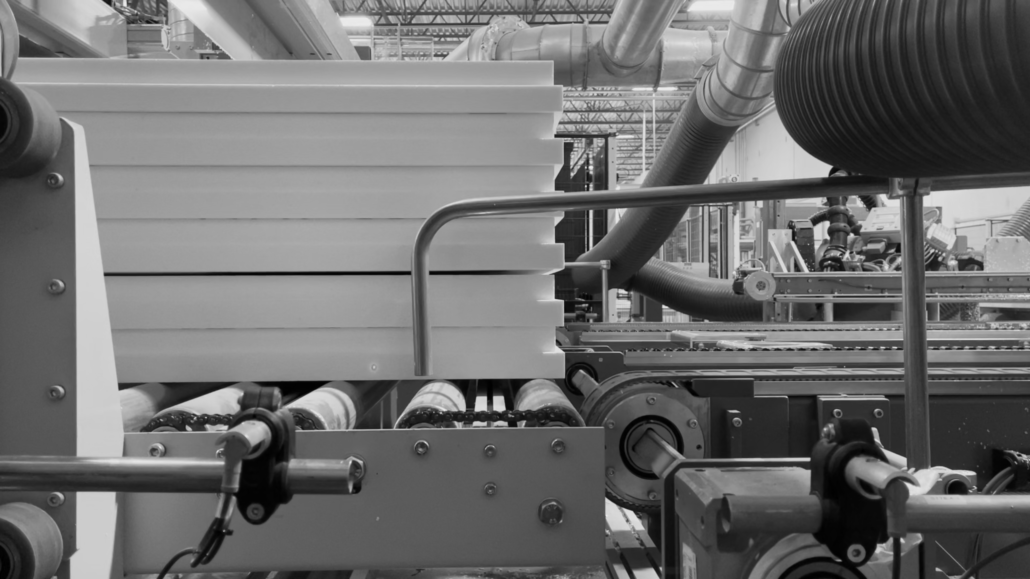

Cutting lines for T&G and ship lap

Tecnodinamica’s cutting lines for T&G and ship lap production are machines to turn EPS blocks into sheets, for the construction industry, where the 4 sides are profiled to create joints that allow the overlapping of panels in all directions.

The joints can be made by hot wire cutting or with special milling stations.

Components

  1. Blocks feeding.
  2. Blocks tilter.
  3. Bottom trimming.
  4. Bottom scrap collection.
  5. Side contour cutting.
  6. Pre-crusher.
  7. Contour cutting.
  8. Bottom scrap collection.
  9. Vertical cutting.
  10. Side scrap collection.
  11. Pre-crusher.
  12. Banding machine.
  13. Cross cutting.
  14. Off-loading table.
  15. Industry 4.0.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

Components

  1. Blocks feeding.
  2. Blocks loading.
  3. Horizontal cutting.
  4. Top scrap collection.
  5. Bottom scrap collection.
  6. Vertical cutting.
  7. Side scrap collection.
  8. Cross cutting.
  9. Pre-crusher.
  10. Sheets de-stacker
  11. Printer.
  12. Lengthwise milling.
  13. Cross milling.
  14. Sheets stacker.

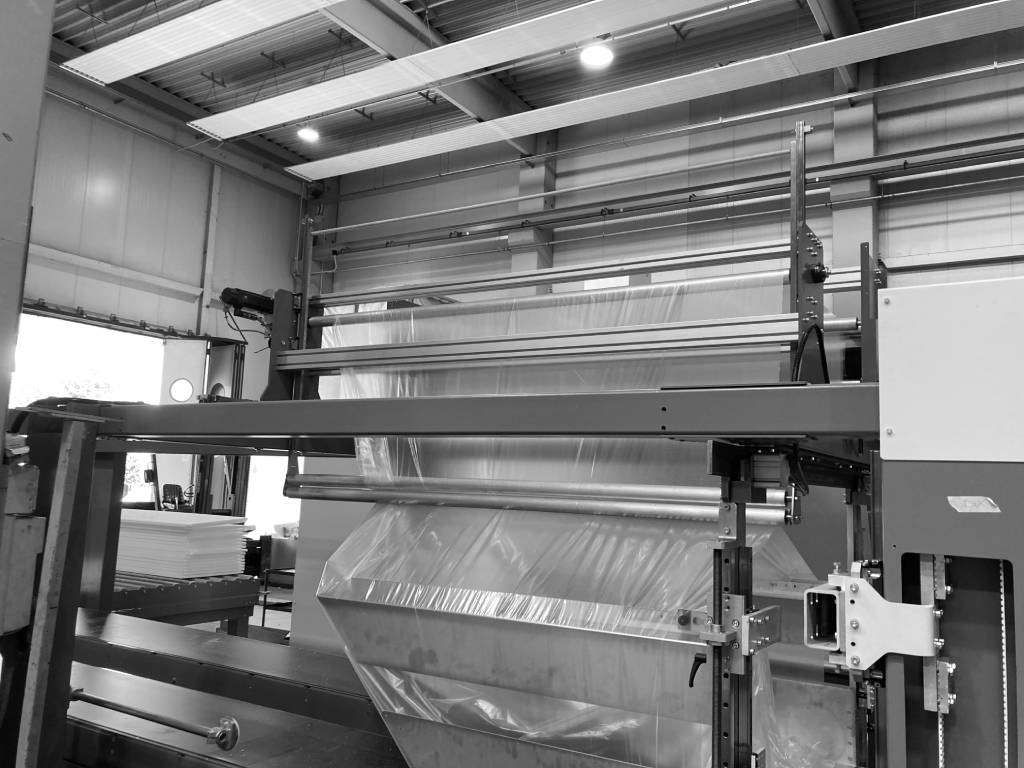

  15. Bagging machine.
  16. Shrinking tunnel.
  17. Stacker.
  18. Skids applicator.
  19. Strapping machine.
  20. Off-loading chain conveyor.
  21. Industry 4.0.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

CUTTING LINES FOR SLOPED EPS ROOFS

Tecnodinamica’s cutting lines for roofing production are fully automatic machines to turn EPS blocks into sheets for the construction industry. These machines allow to get straight, pitched, concave and convex sheets of various dimensions.

Components

  1. Blocks feeding.
  2. Blocks tilter.
  3. Cross cutting.
  4. Pre-crusher.
  5. Inkjet marking station.
  6. Blocks rotation unit.
  7. Contour cutter.
  8. Products rotation unit.
  9. Top scrap collection.
  10. Skids applicator.
  11. Orbital wrapping machine.
  12. Off-loading chain conveyor.
  13. Industry 4.0.
1
2
3
4
5
6
7
8
9
10
11
12
13

Cutting lines for small pieces

Tecnodinamica’s cutting lines for the production of small pieces are fully automatic machines to turn EPS blocks into strips and pads, of various dimensions, for the construction industry and packaging.

Components

  1. Blocks feeding.
  2. Blocks tilter.
  3. Horizontal cutting.
  4. Vertical cutting.
  5. Cross cutting.
  6. Off-loading table.
  7. Industry 4.0.
1
2
3
4
5
6
7
