Steam generation plants for EPS production

Steam generation equipment for powering machines dedicated to the expansion and moulding of expanded polystyrene EPS.

Main features

  • Very low NOx emissions into the atmosphere, thanks to the exclusive treatment of the fumes.
  • Global safety system designed for operation without operator’s supervision up to 72 hours.
  • Steam generators and steam accumulators designed and manufactured according to European Directive 2014/68/UE- PE.

Dry saturated steam is produced by means of high efficiency generators; the steam is made available to the various machines through an adequate pipeline system..

Water treatment plants, supplied by Tecnodinamica, provide the steam generator with water having suitable chemical and physical characteristics to ensure excellent steam quality and long life of the whole system.

Components

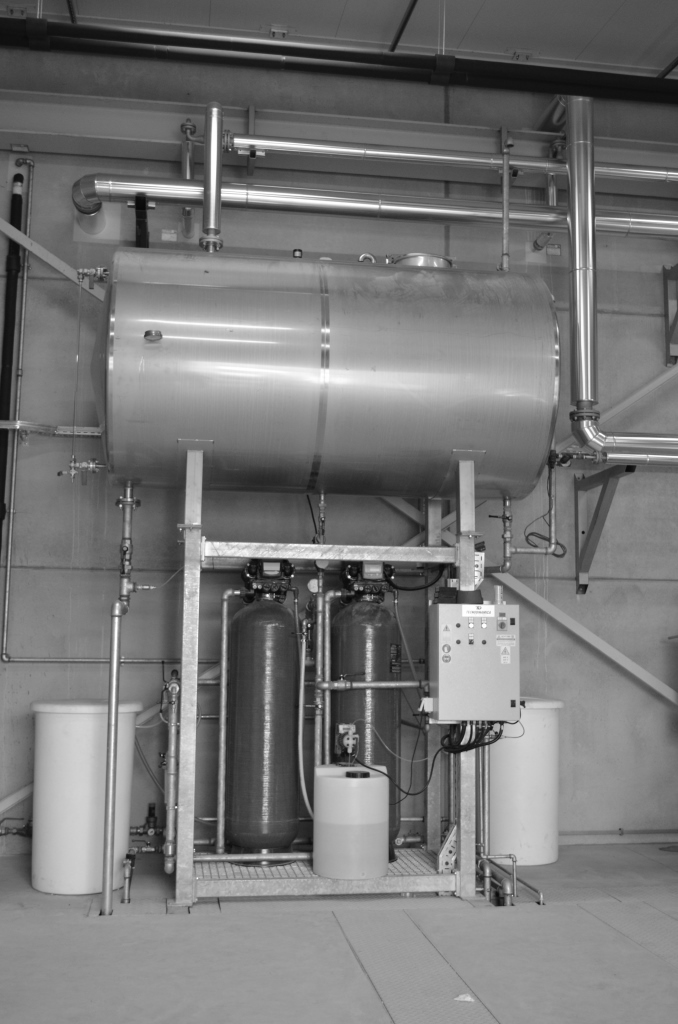

  1. Water treatment
  2. Steam generator feeding tank

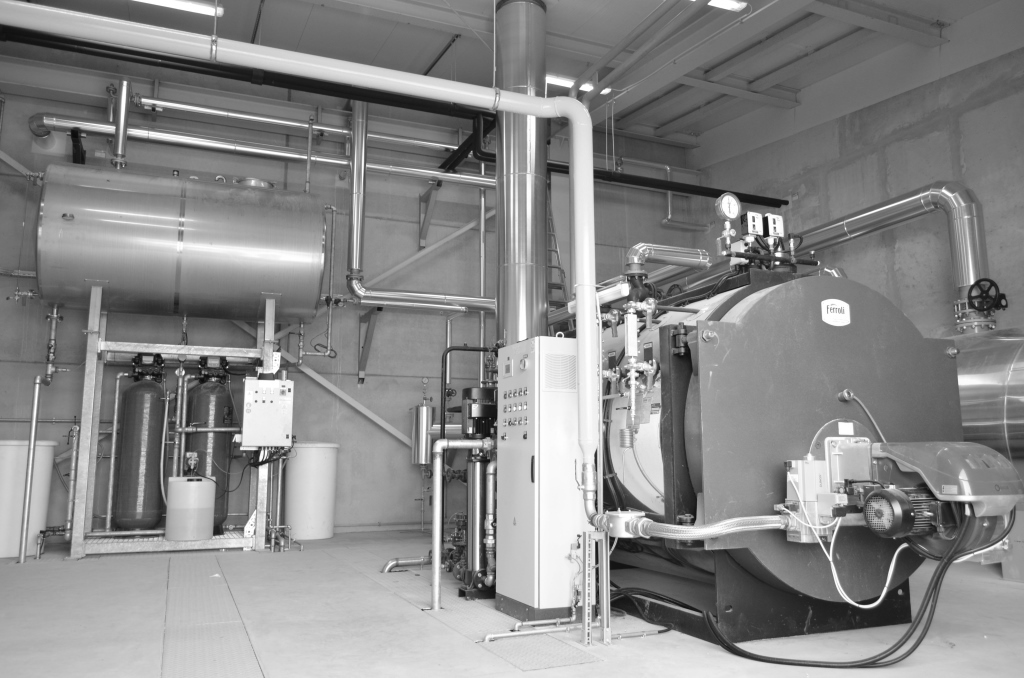

  3. Steam generator
  4. Burner

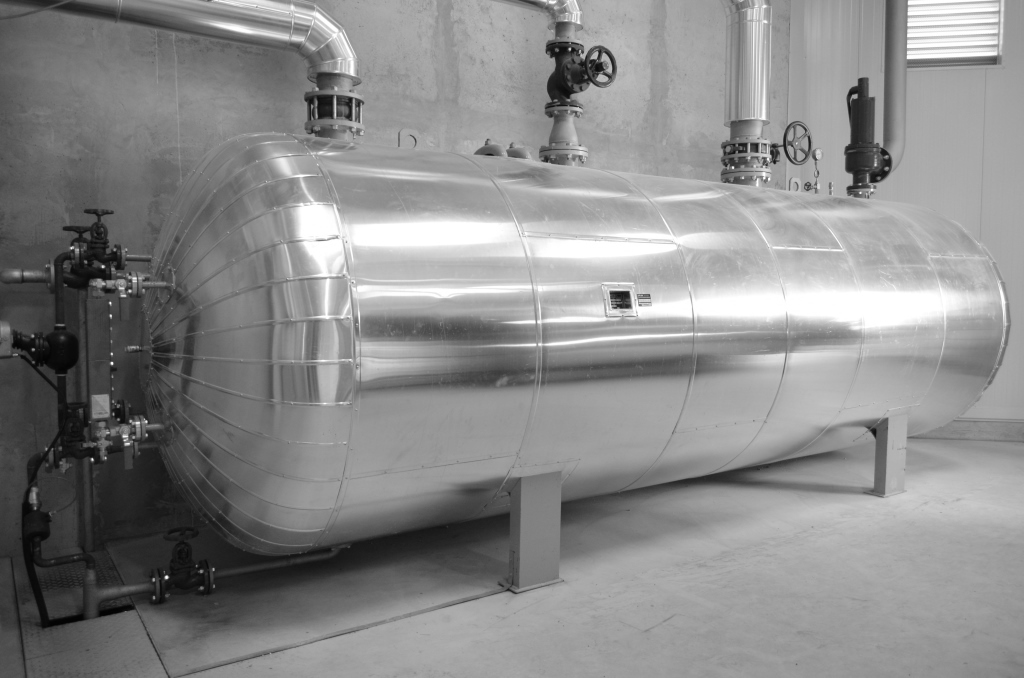

  5. Steam Accumulator

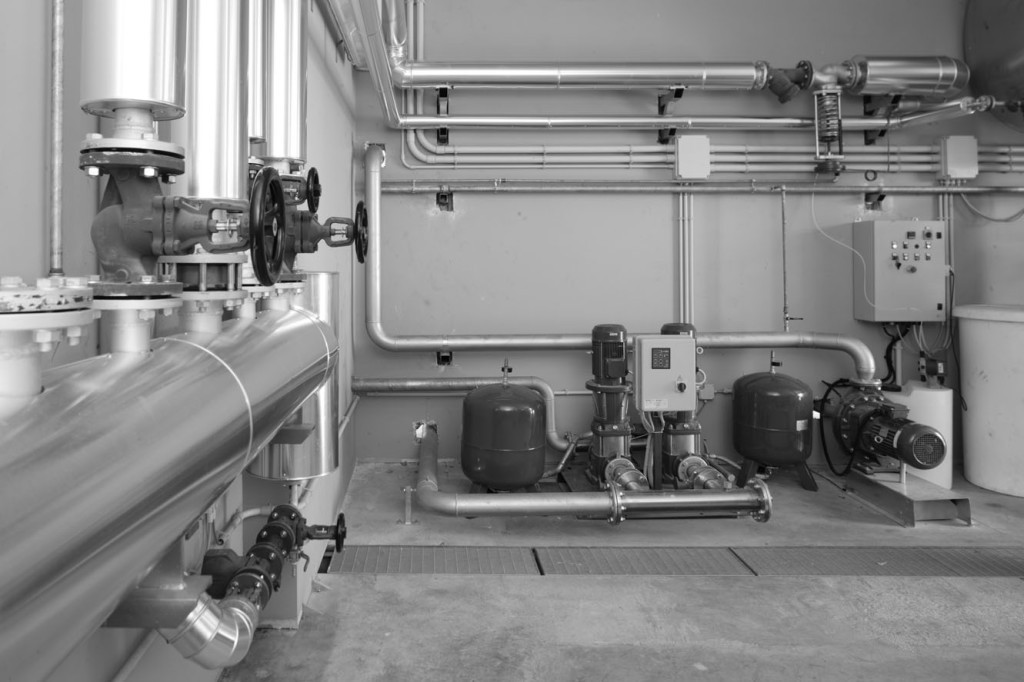

  6. Steam transport pipelines
